IE2, IE3 and IE4 Efficiency class Induction Motor

TRANSFORMING ENERGY, EFFICIENCY, ENHANCING

Experience LOKENATH INDUSTRY GE BRAND premium 3-Phase Induction Motors, designed for industrial applications. Our motors deliver:

  • Efficiency Class: IE2/IE3/IE4 ratings for minimized energy losses
  • Proven Reliability: Robust construction, low vibration, and advanced cooling systems
  • Optimized Performance: High torque density, compact design, and customizable options
  • Cost-Effective Solution: Reduced energy consumption and extended lifespan
Key Features:
  • IE2/IE3/IE4 efficiency rating
  • 3 -phase, 50/60 Hz operation
  • Power range: 1-500 HP
  • Voltage range: 230-690V
  • IP55/IP65 protection
  • CE, UL, and IEC certified
Benefits:
  • Cost competitive
  • Reduced maintenance
  • Enhanced system reliability
  • Compact design for space-saving installations
Differentiators:
  • Advanced cooling systems for improved heat dissipation
  • Robust bearings for extended lifespan
63 TO 132 FRAMES
160 TO 200 FRAMES
225 TO 315 FRAMESS

Available in Three Versions – LOKENATH INDUSTRY GE BRAND IE2, LOKENATH INDUSTRY GE BRAND IE3 and LOKENATH INDUSTRY GE BRAND IE4. The LOKENATH INDUSTRY GE BRAND motors meet the IE2, IE3 & IE4 efficiency levels according to IEC 60034-30 standard.

Induction Motor Electrical Data

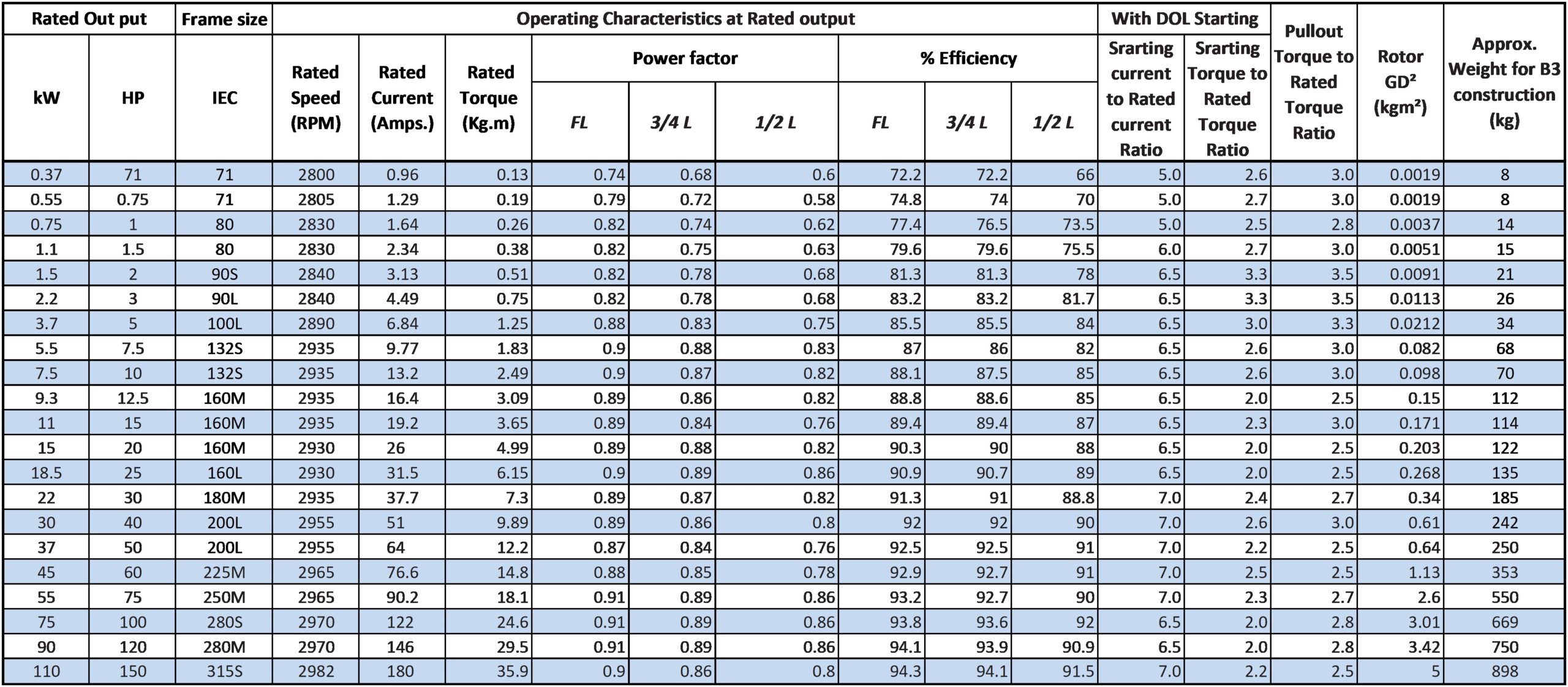

IE2 | 3P Motor | 415V | 2Pole | 3000RPM | 50Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

IE2 | 3P Motor | 415V | 4Pole | 1500RPM | 50Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

IE2 | 3P Motor | 415V | 6Pole | 1000RPM | 50Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

IE3 | 3P Motor | 415V | 2Pole | 3000RPM | 50Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

IE3 | 3P Motor | 415V | 4Pole | 1500RPM | 50Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

IE3 | 3P Motor | 415V | 6Pole | 1000RPM | 50Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

IE4 | 3P Motor | 415V | 2Pole | 3000RPM | 100Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

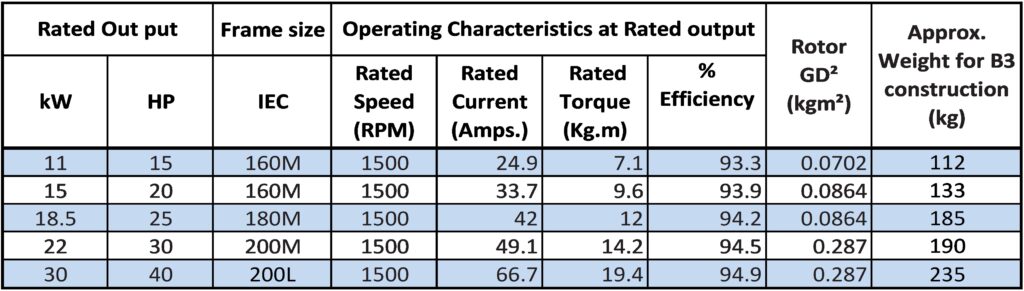

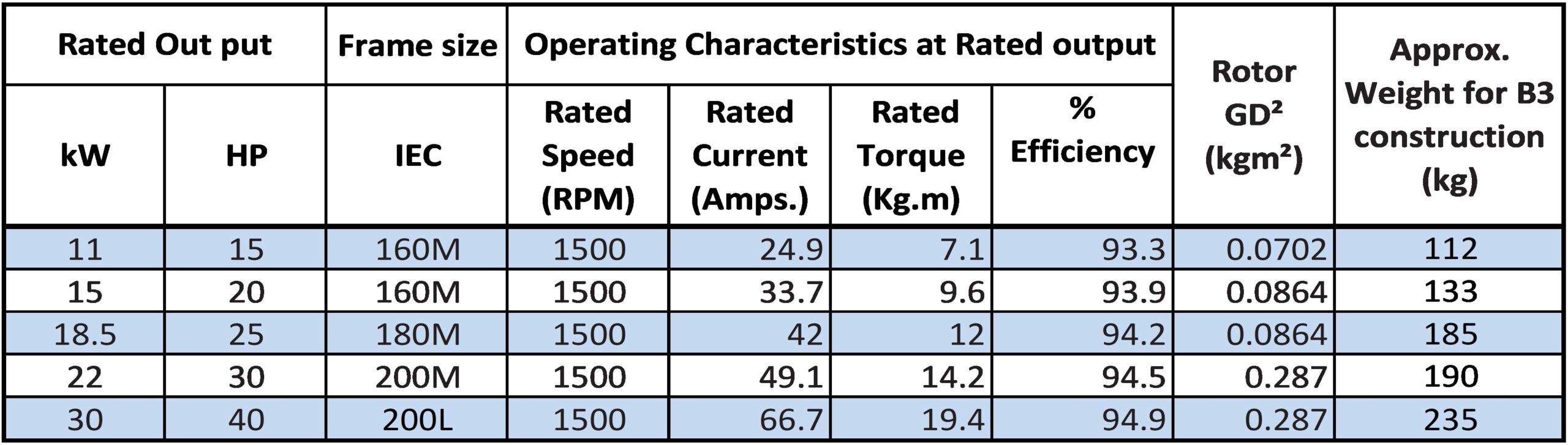

IE4 | 3P Motor | 415V | 4Pole | 1500RPM | 50Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55

IE4 | 3P Motor | 415V | 6Pole | 1000RPM | 33Hz. | S1 (Continues) | Ambient 50° | Class F | Temperature Rise B | IP55
