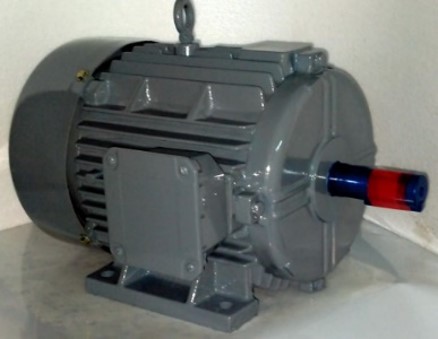

IE5+ Efficiency PM Motor for Industrial Pump Application
EEFICIENCY REDEFINED- RELIABILITY ASSURED
Experience LOKENATH INDUSTRY GE BRAND IE5+ Permanent Magnet Synchronous Motors with unparalleled efficiency and reliability for industrial applications. Our unique design ensures:
- Unmatched Energy Savings: Up to 25% energy reduction compared to standard motors
- High Torque Density: Increased power output in a compact footprint
- Proven Reliability: Robust construction and advanced materials for minimized downtime
- Cost Competitiveness: Optimized design for reduced total cost of ownership
- Ideal for: System integrators and end-users seeking high-performance, energy-efficient solutions for industrial applications.
Key Features:
- IE5+ efficiency rating
- High torque density
- Compact design
- Permanent magnet synchronous technology
- CE and UL certified
- Power range: 3 hp to 25 hp
Differentiators:
- Unique design ensuring high torque density and efficiency
- Advanced materials for robust construction
- Optimized for industrial applications
Benefits:
- Reduced energy consumption
- Increased productivity
- Lower operating costs
- Minimized maintenance
- Enhanced system reliability

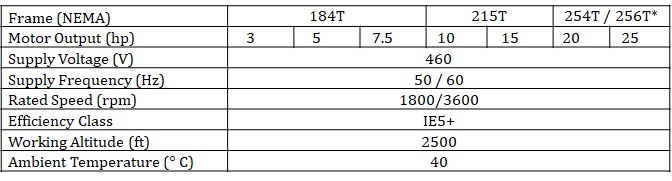

Vacuum Pump Electric Motor Specifications
Key Features of Pump Motors:
- VFD Driven Permanent Magnet Brushless Motor
- No position feedback is mounted
- High power in reduced frame size
- High torque to weight ratio
- Smooth and quiet operation
- Wide speed range
- CE / UL Certified
- The nominal bearing life L 10h is 20,000 or 40,000 hours in conformance with maximum radial and axial loads
- Protection class: IP55
- TEFC enclosure
- Epoxy painting finish has minimum resistance to the salt spray test of 120 hours and 240 hours and may be used for motors applied at normal environments, slightly severe, sheltered or non-sheltered, for industrial use, with low relative humidity, normal temperature variations and the presence of SO 2 .
- Stator winding with Class H insulation
- Long life of permanent magnet using UH grade permanent magnet and with innovative design solution
- High reliability with better thermal management
- Low maintenance
- Energy efficient
- Cost competitive

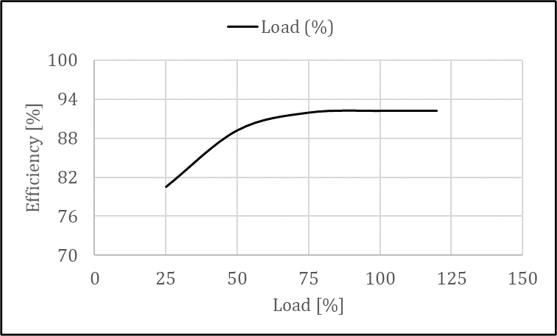

- A further characteristic of the LOKENATH INDUSTRY GE BRAND electrical design is that it was conceived in such a way that its efficiency remains practically constant in the 75% to 100% load range. Therefore, even when the motor is not running at full load its efficiency is not affected. Suitable for different applications (see attached performance curves)
